Tile Types

These are the tile types you can place in a terrain grid. All angles are in radians unless noted. All sizes and heights are in meters. Every tile keeps a flat top at its base_height around its perimeter (the boundary contract), so tiles always join cleanly.

flat

flat tile render
A flat-topped box at a fixed height.
Parameter Default Range / type Description
height 0.0 float Top face z-coordinate (offset above the grid plane).

stairs

stairs tile render
A staircase that rises to a central peak, then mirrors down. It supports an inverted pit variant.
Parameter Default Range / type Description
step_height 0.15 float, (0.08, 0.25) Riser height per step.
step_width None float or None Tread depth. None makes the tile auto-fit all n_steps.
n_steps 6 int, (3, 12) Number of risers from base to peak.
axis "y" "x" or "y" Axis the staircase runs along.
peak_width 0.4 float, (0.2, 0.5) Width of the flat plateau at the top.
return_mode "mirror" str How the descending half is built.
cross_ratio 0.9 float Fraction of the perpendicular axis covered by tread.
inverted False bool If True, stairs descend into a pit and mirror back up.
base_height 0.0 float z-coordinate of the tile’s flat-edge base.

slope

slope tile render
A flat ramp that climbs along one axis, with an optional plateau at the peak.
Parameter Default Range / type Description
angle_deg 12.0 float, (5.0, 25.0) Incline angle in degrees.
axis "y" "x" or "y" Axis the slope rises along.
direction "mirror" str How the falling half is built.
plateau_ratio 0.1 float, (0.05, 0.3) Fraction of tile length given to the flat peak.
cross_ratio 0.9 float Fraction of the perpendicular axis covered by the ramp.
inverted False bool If True, the ramp descends into a pit and rises back.
base_height 0.0 float z-coordinate of the tile’s flat-edge base.

pyramid_stairs

pyramid_stairs tile render
Concentric square stairs that rise to (or descend from) a central platform.
Parameter Default Range / type Description
step_height 0.2 float, (0.1, 0.3) Riser height per step.
step_width 0.5 float, (0.3, 0.8) Tread depth (radial).
n_steps 5 int, (3, 8) Number of concentric steps.
outer_margin 0.5 float, (0.2, 1.0) Flat band between the tile edge and the first step.
inverted False bool If True, stairs descend into a central pit.
base_height 0.0 float z-coordinate of the tile’s flat-edge base.

rough

rough tile render
Heightfield-backed mixed terrain (basins, plateaus, hills, and detail noise). It writes a .png heightmap to the terrain library directory.
Parameter Default Range / type Description
seed 0 int, (0, 1e6) RNG seed for the heightmap.
vertical_relief 0.8 float, (0.1, 1.5) Total [min, max] heightmap range, scaled by hfield_size_z.
grid_resolution 256 int Heightmap resolution in pixels per side.
num_pits 18 int, (0, 30) Number of gaussian pit features blended in.
num_hills 24 int, (0, 30) Number of gaussian hill features blended in.
terrace_levels 5 int, (1, 9) Plateau quantization levels.
pit_threshold 0.33 float Selector cutoff that switches a macro region to a pit.
plateau_threshold 0.68 float Selector cutoff that switches a macro region to a plateau.
edge_taper_frac 0.1 float Fractional band over which heights taper to 0 at the tile edge (keeps the flat-at-base contract).
relief_mode "centered" "centered", "up", or "down" Whether features go above and below the base, only up, or only down.
base_height 0.0 float z-coordinate of the tile’s flat-edge base.

discrete_obstacles

discrete_obstacles tile render
Randomly placed boxes at random heights.
Parameter Default Range / type Description
density 0.4 float, (0.1, 1.0) Approximate fraction of tile area covered by obstacles.
size_range [0.2, 0.5] [lo, hi] Min and max obstacle footprint size in meters.
height_range [0.1, 0.4] [lo, hi] Min and max obstacle height in meters.
edge_margin 0.5 float, (0.2, 1.0) Keep obstacles this far from the tile edge.
seed 0 int RNG seed.
base_height 0.0 float z-coordinate of the tile’s flat-edge base.

stepping_stones

stepping_stones tile render
A regular grid of small raised stones, with optional jitter.
Parameter Default Range / type Description
rows 4 int, (2, 8) Number of stones along the y-axis.
cols 4 int, (2, 8) Number of stones along the x-axis.
stone_size 0.6 float, (0.3, 1.0) Stone footprint size in meters.
stone_height 0.2 float, (0.05, 0.4) Height of each stone above the base.
jitter_frac 0.2 float, (0.0, 0.4) Random offset as a fraction of stone spacing.
edge_margin 0.5 float Keep stones this far from the tile edge.
seed 0 int RNG seed.
base_height 0.0 float z-coordinate of the tile’s flat-edge base.

boulders

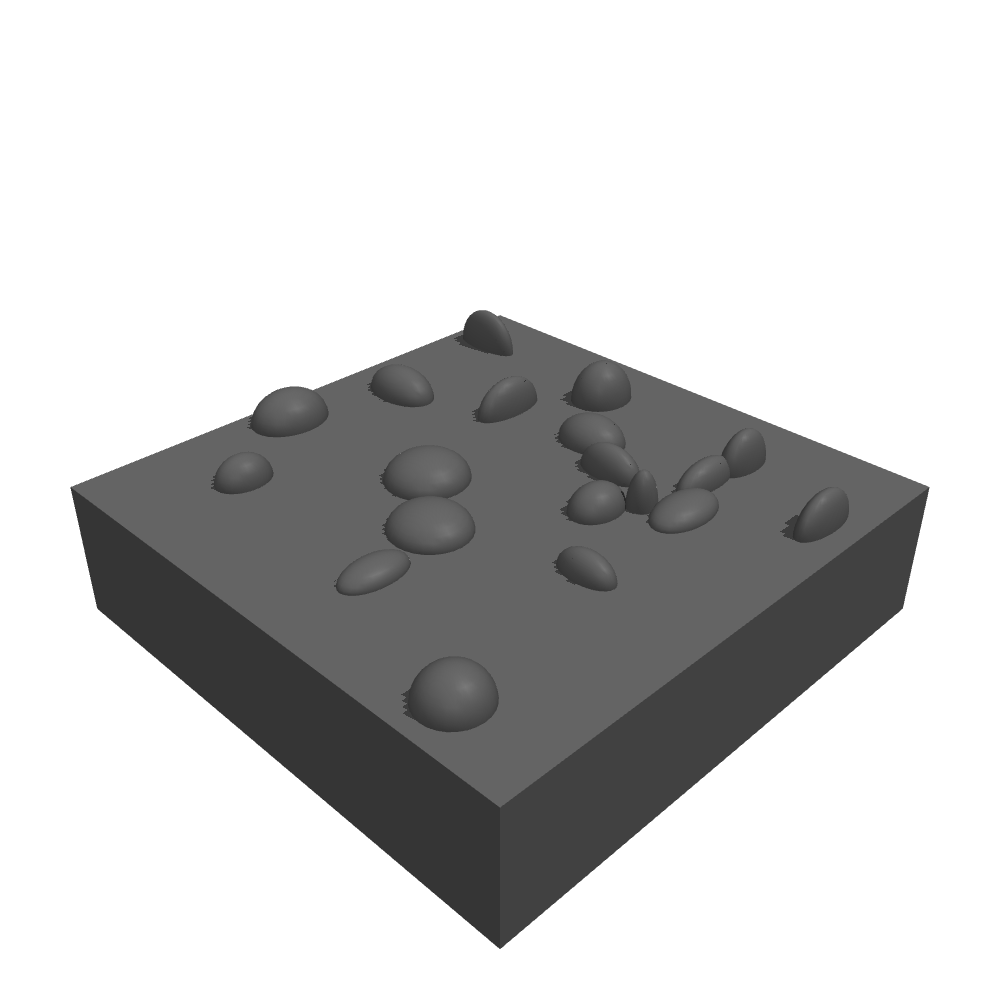

boulders tile render
Randomly placed half-sphere boulders.
Parameter Default Range / type Description
density 0.3 float, (0.05, 0.8) Approximate fraction of tile area covered by boulders.
size_range [0.2, 0.6] [lo, hi] Min and max boulder diameter in meters.
edge_margin 0.5 float, (0.2, 1.0) Keep boulders this far from the tile edge.
seed 0 int RNG seed.
base_height 0.0 float z-coordinate of the tile’s flat-edge base.

gap

gap tile render
A linear gap cut through the tile (no geom in the gap band).
Parameter Default Range / type Description
gap_width 0.5 float, (0.1, 1.0) Width of the gap in meters.
axis "y" "x" or "y" Axis the gap runs along.
base_height 0.0 float z-coordinate of the tile’s flat-edge base.
