Assistive Devices

A device is the assistive hardware that composes with a human MSK model to form an environment. A device can be an exoskeleton, a powered or passive prosthetic leg, or any other assistive device. Devices come from assist_sim. You select one with the device field of the environment spec.

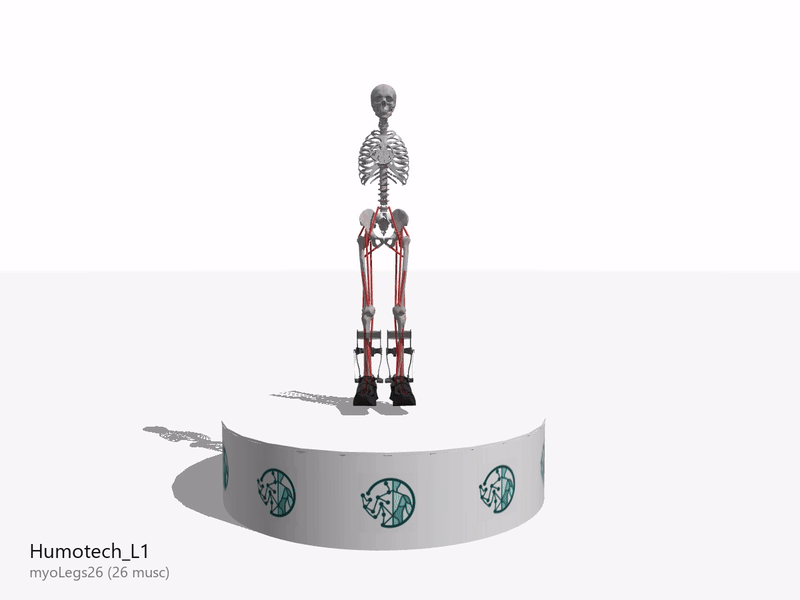

Lower-limb assistive devices composed on the model

See Device Catalog for every currently available device.

Where devices fit

Four packages work together to build a simulation:

  • myo_sim provides the human MSK models and their meshes.
  • assist_sim holds the device configurations and the combination pipeline. It composes one MSK and one device into a single runnable model.
  • myoassist.terrains provides the scene (ground and heightfields). The assist_sim output is model-only, with no ground.
  • myoassist consumes the composed model for Controller Optimization and Reinforcement Learning.

assist_sim composes the model. It does not provide MSK models, terrain, or a training loop.

Device keys

Each device key comes from a config file, models/<DeviceDir>/<variant>config.yaml. For example, models/DephyExoBoot/L1config.yaml gives the key DephyExoBoot_L1, and models/OpenSourceLeg/A_L1config.yaml gives OpenSourceLeg_A_L1. The device’s device.name field is also registered as an alias.

When a device attaches to an MSK, its device.name becomes a prefix on every body, site, mesh, joint, actuator, and tendon that the device contributes (for example DephyExoBootL1_exo_1_r). The prefix prevents name collisions and marks the device’s parts in the composed model.

Per-MSK overrides

One device config can carry per-MSK variations. Sections such as attachments, tendon_modifications, keyframe_overrides, actuator_removals, tendon_removals, and mesh_replacements can hold a default entry plus per-MSK-key entries. The resolver picks the matching MSK key if it is present, otherwise it uses default. See Device Configuration for the sections and their fields.
